Produkta pārskats

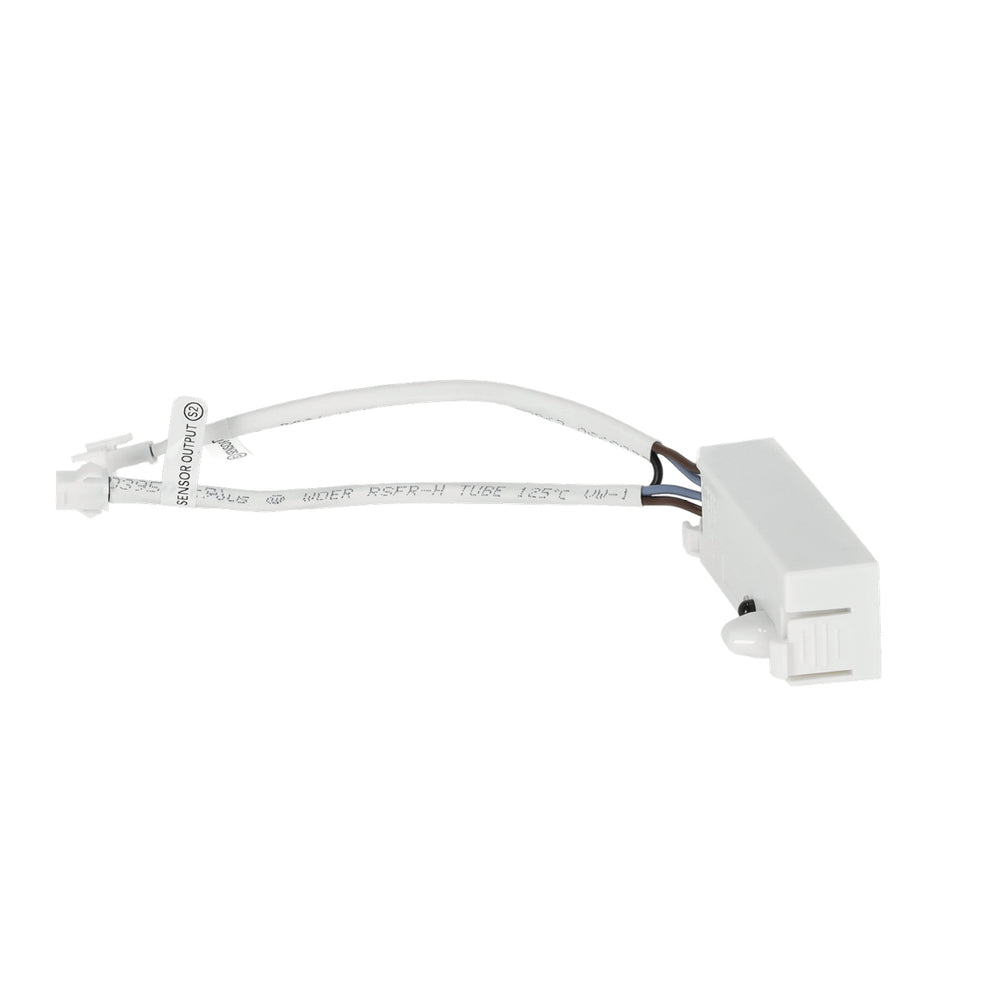

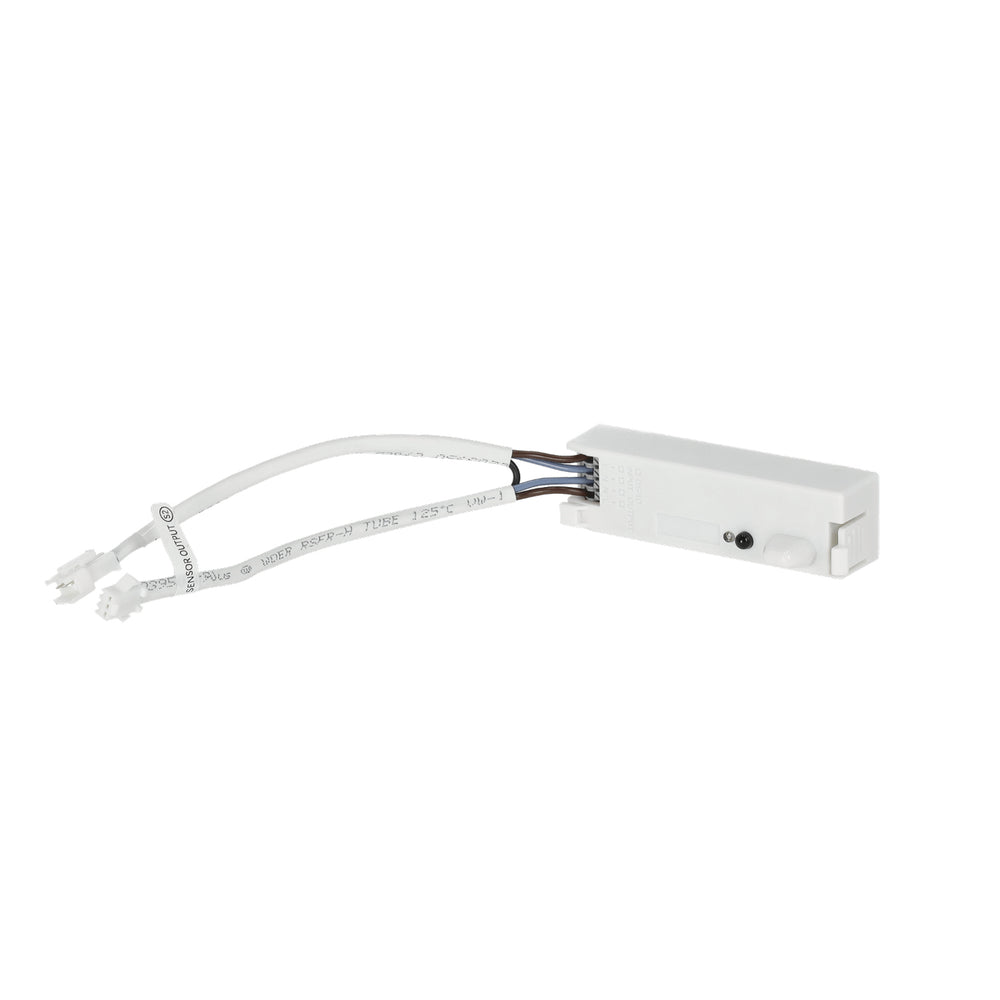

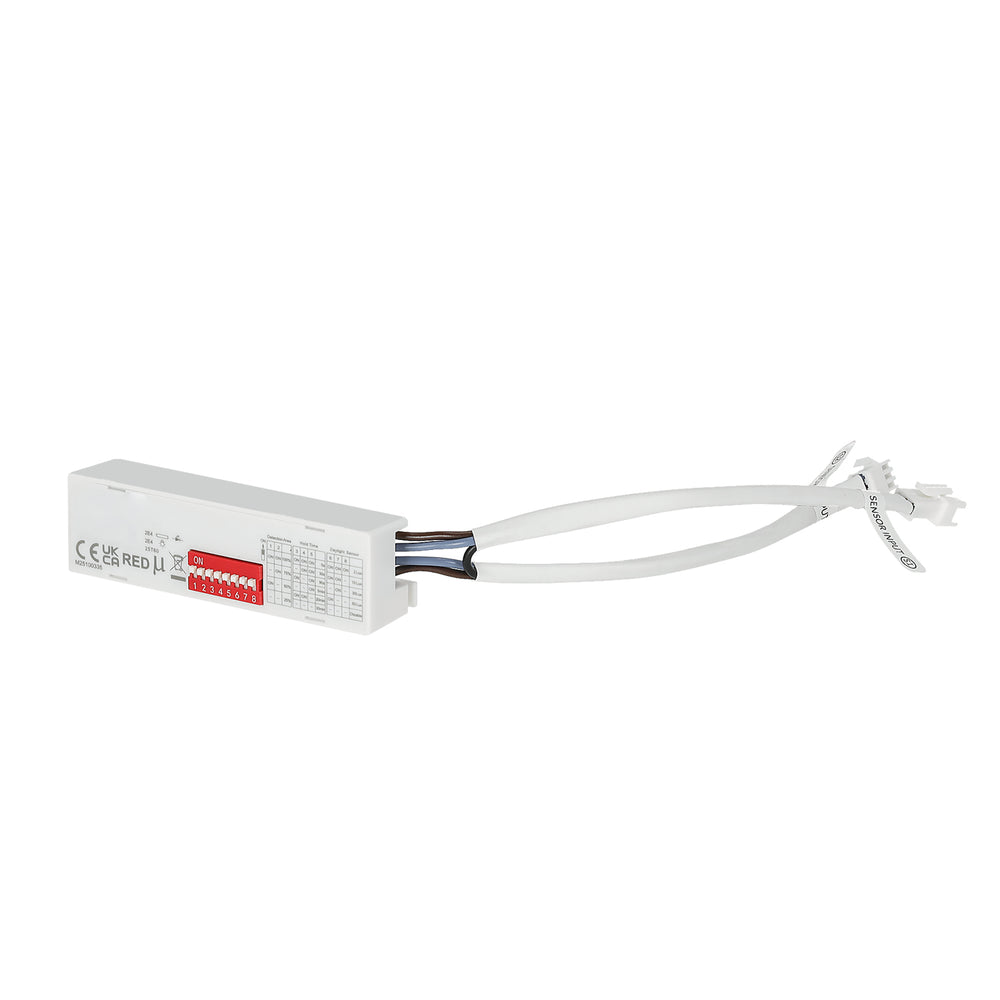

MC130S Motion Sensor Kobi Pro – Automatic Control for NEXFORCE N2 and DEFENDER G2 Luminaires
Kobi Pro | 105° | Detection Range up to 5 m | 5 s–30 min | 2–50 lx | IP20 | White | 5-Year Warranty
The MC130S Motion Sensor Kobi Pro is an accessory designed for LED NEXFORCE N2 and LED DEFENDER G2 luminaires, enabling automatic lighting control based on motion detection and ambient light levels. Adjustable operating time and activation threshold allow the sensor settings to be adapted to the conditions and requirements of a specific installation.
Key Features:
✔ Designed for LED NEXFORCE N2 and LED DEFENDER G2 luminaires – adds automatic lighting control functionality to compatible luminaires
✔ 105° detection angle – enables effective motion detection within the monitored area
✔ Detection range up to 5 m – provides lighting control within the monitored space
✔ Adjustable operating time from 5 seconds to 30 minutes – allows the lighting duration after motion detection to be adjusted
✔ Adjustable ambient light threshold from 2 to 50 lx – allows the ambient light level at which the sensor activates the connected luminaire to be set
✔ Maximum load:
• 200W – for LED light sources
• 400W – for other light sources
✔ Optimal mounting height:
• ceiling – 2.5–5 m
• wall – 2–3 m
✔ Standby power consumption Psb ≤0.5W – low power consumption while waiting for motion detection
✔ IP20 protection rating – designed for indoor use
✔ Operating temperature range – from -20°C to +40°C
✔ Compact dimensions of 92 × 26 × 31 mm – facilitate installation within a compatible lighting system
✔ White colour – neutral finish suitable for lighting installations and luminaires
✔ 5-year warranty – extended warranty period for greater peace of mind
Applications:
✅ LED NEXFORCE N2 luminaires
✅ LED DEFENDER G2 luminaires
✅ Corridors and circulation areas
✅ Technical and utility rooms
✅ Warehouses and service areas
✅ Automatic lighting control based on motion and ambient light levels
The MC130S Motion Sensor Kobi Pro adds automatic lighting control to compatible luminaires. A detection range of up to 5 m, adjustable operating time and an ambient light threshold range of 2–50 lx allow the sensor operation to be adapted to the conditions of a specific space
