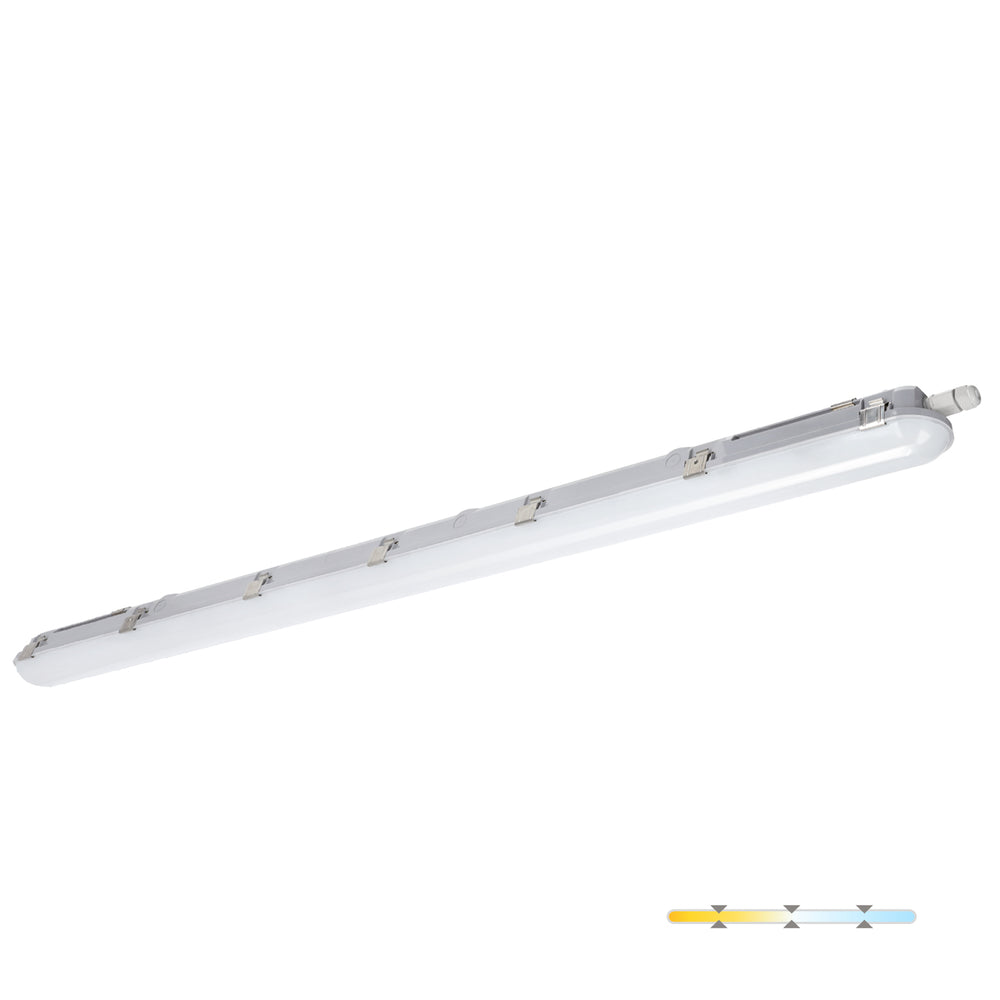

LED NEXFORCE N2 3CCT DALI Hermetic Linear Luminaire Kobi Pro – High Luminous Efficacy and Flexible Parameter Adjustment
Kobi Pro | 36W / 52W / 70W | up to 12,000 lm | up to 175 lm/W | 3CCT | DALI | IP65 | IK08 | 5-Year Warranty
The LED NEXFORCE N2 3CCT DALI Hermetic Linear Luminaire Kobi Pro is a professional luminaire with integrated LEDs, designed for demanding commercial, industrial and technical environments. The integrated DALI protocol, three selectable colour temperatures and 4-step power adjustment allow the lighting parameters to be tailored to the requirements of each installation. Through-wiring and an external connection terminal make it easier to create continuous lighting installations.
Key Features:
✔ Integrated DALI protocol – enables integration with professional lighting control and management systems
✔ 3CCT – three selectable colour temperatures:
• 3000K – warm white
• 4000K – neutral white
• 6000K – cool white
✔ 4-step power adjustment – sliders located on the driver allow the luminaire power to be adjusted to suit the requirements of the illuminated space:
• 36W version – 36 / 32 / 28 / 22W
• 52W version – 52 / 46 / 38 / 32W
• 70W version – 70 / 60 / 50 / 40W
✔ Luminous flux according to the selected power setting:
• 36W version – 6300 / 5440 / 4760 / 3740 lm
• 52W version – 9000 / 7820 / 6460 / 5440 lm
• 70W version – 12,000 / 10,200 / 8500 / 6800 lm
✔ Luminous efficacy up to 175 lm/W – provides high light output in relation to power consumption
✔ 120° beam angle – distributes light over a wide area for uniform illumination
✔ Polycarbonate housing and opal polycarbonate diffuser – durable construction suitable for a hermetic luminaire
✔ IP65 protection rating – provides protection against dust and water jets, allowing the luminaire to be used in more demanding environments
✔ IK08 impact resistance – enhanced housing resistance to mechanical impacts
✔ Through-wiring – simplifies installations consisting of multiple luminaires
✔ External connection terminal – facilitates electrical connection during installation
✔ Maximum number of connectable luminaires:
• 36W version – max. 22 units
• 52W version – max. 17 units
• 70W version – max. 11 units
✔ PZH certificate – confirms suitability for use in facilities with increased hygiene requirements
✔ CRI Ra ≥80 – provides natural and comfortable colour rendering
✔ Power factor DF ≥0.95 – high power factor supports proper and stable operation of the electrical installation
✔ Light source energy efficiency class B – high energy efficiency of the integrated LED light source
✔ Light source lifetime up to 50,000 hours – long service life reduces the frequency of light source replacement
✔ 25,000 switching cycles – suitable for frequent switching during everyday use
✔ Operating temperature range – from -20°C to +40°C
✔ The LED light source may only be replaced by qualified personnel
✔ 5-year warranty – extended warranty period for greater peace of mind
Applications:
✅ Production halls and warehouses
✅ Workshops and technical rooms
✅ Garages and parking facilities
✅ Industrial facilities
✅ Service areas and circulation spaces
✅ Facilities requiring luminaires with an increased protection rating
✅ Installations using DALI control
✅ Extensive lighting installations requiring multiple interconnected luminaires
The LED NEXFORCE N2 3CCT DALI Hermetic Linear Luminaire Kobi Pro combines luminous efficacy of up to 175 lm/W with adjustable power and selectable colour temperature. DALI control, IP65, IK08, through-wiring, and the ability to connect multiple luminaires provide the flexibility required for professional lighting installations.
