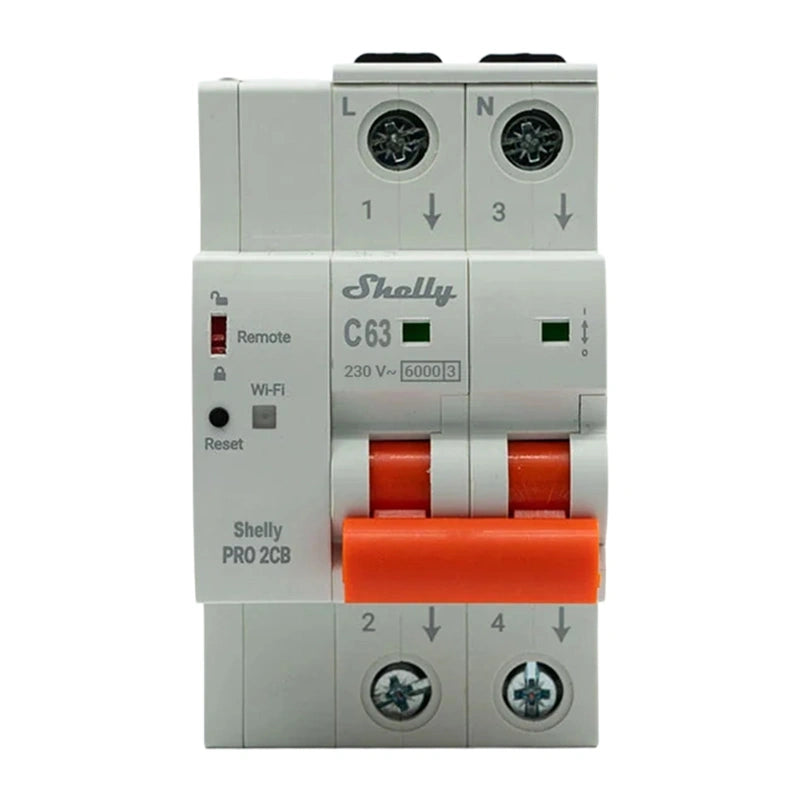

SHELLY Pro 2CB C63 Circuit Breaker
The SHELLY Pro 2CB C63 circuit breaker is a smart, 2-pole electrical circuit protection device with a rated current of 63 A, a C-type trip characteristic, and a short-circuit breaking capacity of 6 kA. The device protects the electrical system against overloads, short circuits, and excessively high or low voltage. Thanks to Wi-Fi, Bluetooth, and Ethernet connectivity, it allows for remote circuit activation and deactivation, as well as measurement and monitoring of line voltage (V) using a built-in voltmeter. Support for the Shelly Smart Control app, schedules, automation scripts, and the MQTT protocol enables integration with smart home and building management systems. A built-in safety switch allows you to disable remote control, and an event history of up to 100 events makes it easy to monitor the operation of the safety feature.
| Manufacturer |
Shelly |
| Model |
Pro 2CB C63 |
| Device Type |
Smart circuit breaker |
| Number of poles |
2 |
| Rated current |
63 A |
| Tripping characteristic |
C |
| Rated short-circuit capacity |
6 kA |
| Supply voltage |
230 V AC, 50 Hz |
| Minimum operating voltage |
160 V AC |
| Electronics power consumption |
Less than 3 W |
| Circuit breaker power loss |
11.20 W |
| Energy limitation class |
3 |
| Insulation voltage |
500 V |
| Withstand voltage |
4 kV |
| Protection functions |
Overload, short-circuit, overvoltage, and undervoltage |
| Mains voltage measurement (AC) |
Yes |
| Voltage measurement accuracy |
±5% |
| Voltage monitoring |
Yes, in volts (V) |
| Current measurement (A) |
No |
| Power measurement (W) |
No |
| Energy consumption measurement (kWh) |
No |
| Internal temperature sensor |
Yes |
| Connectivity |
Wi-Fi 2.4 GHz, Bluetooth 4.2, Ethernet (RJ45) |
| Supported protocols |
MQTT, HTTP, WebSocket |
| Remote control |
Yes |
| Schedule support |
Yes |
| Automation script support |
Yes |
| Event history |
Up to 100 entries |
| App |
Shelly Smart Control |
| Installation |
DIN rail |
| Dimensions |
93 × 54 × 76 mm |
| Weight |
335 g |
| Housing Material |
Plastic |
| Color |
Light gray |
| Operating Temperature |
-5°C to 40°C |
| Operating Humidity |
30–70% RH |
| Electrical Life |
Over 6,000 cycles |
| Mechanical durability |
Over 20,000 cycles |
|
