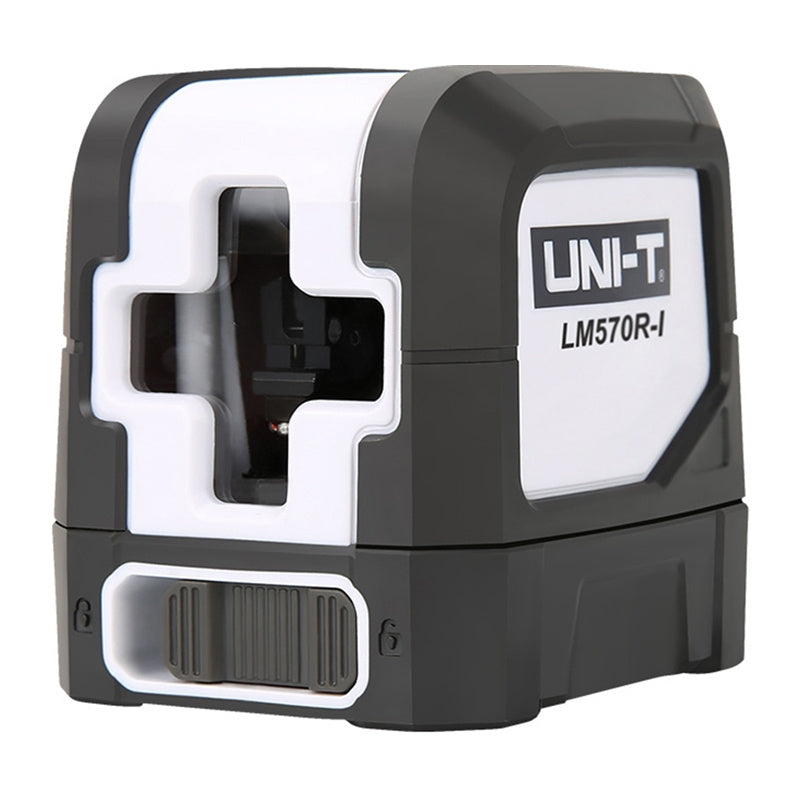

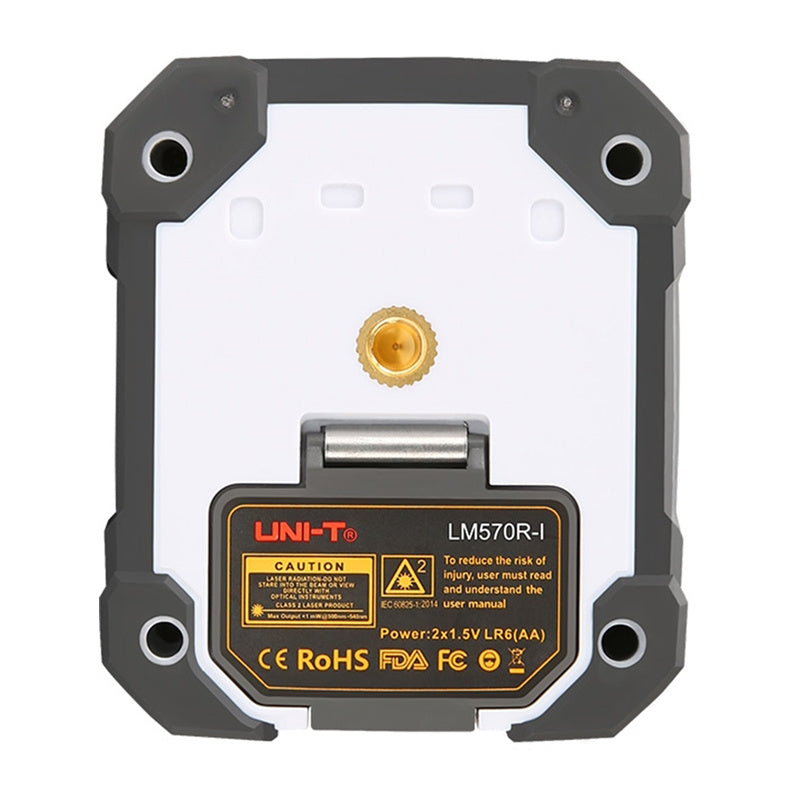

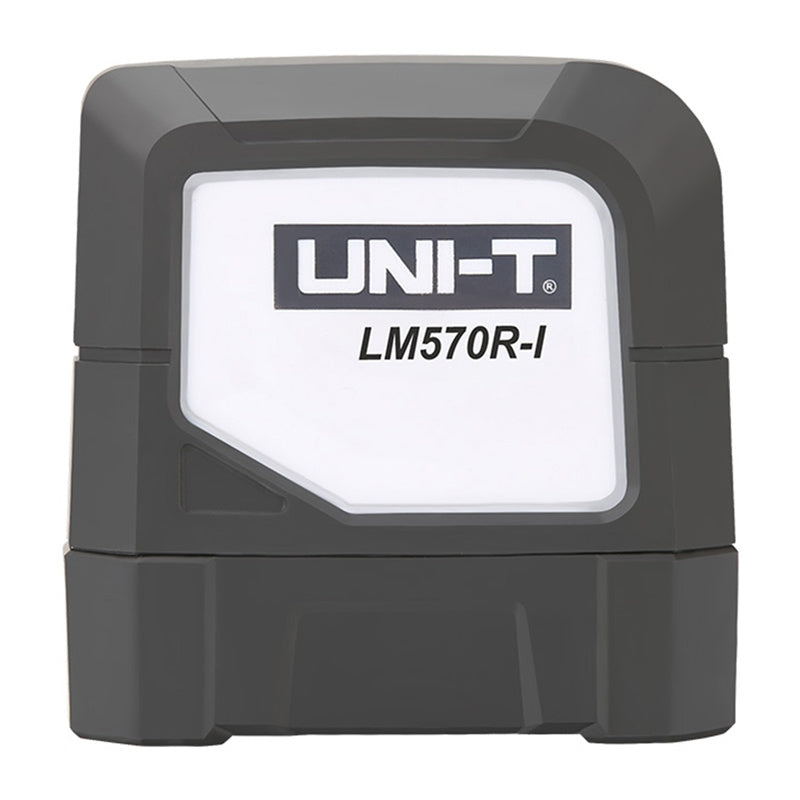

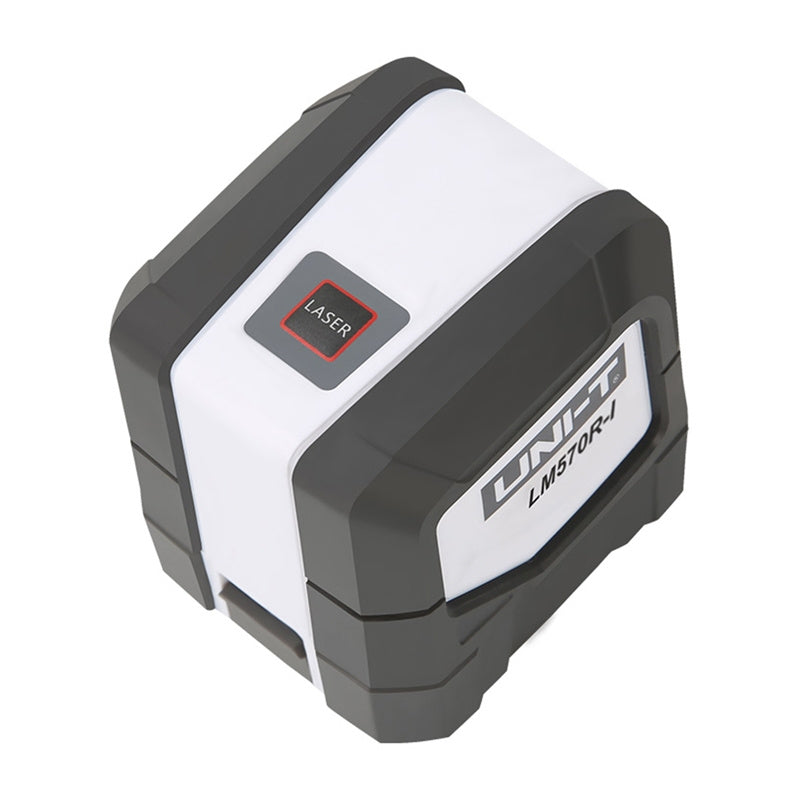

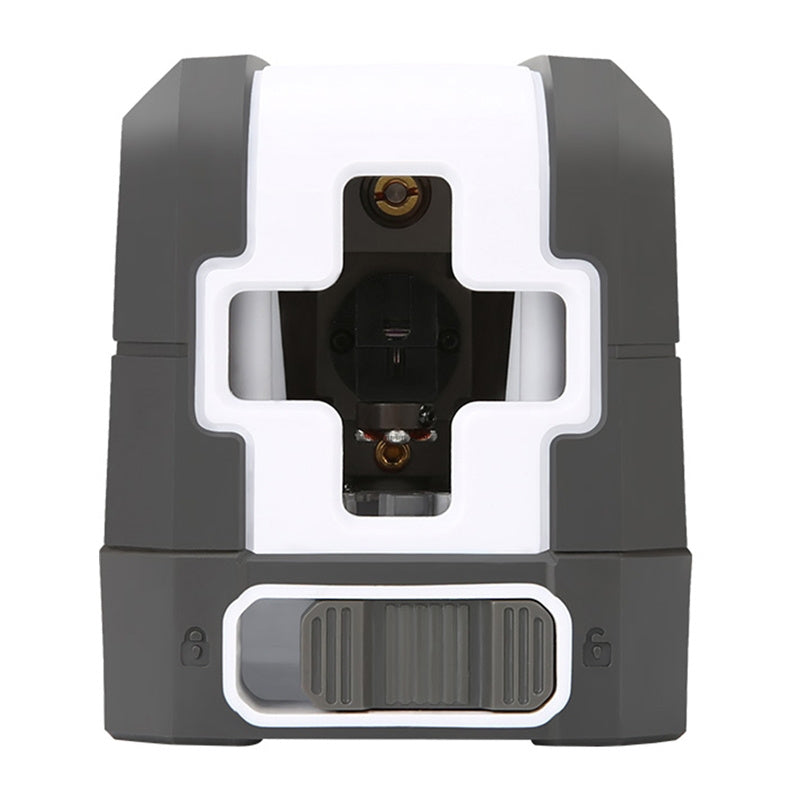

Uni-T LM570R-I Laser Level
The LM570R-I is a compact laser level designed for basic construction and finishing work where precise marking of horizontal and vertical lines is required. The device operates in a 1V1H configuration, allowing for efficient leveling in two planes, and its working range of up to 30 m makes it well-suited for indoor use and smaller installation projects. The red laser with a wavelength of 635 nm ensures clear visibility of the lines under typical working conditions.
Included
- Laser level
- Carrying case
- USB cable
- User manual
Specifications
| Manufacturer |
Uni-T |
| Model |
LM570R-I |
| Type |
Laser level |
| Laser configuration |
1V1H |
| Working range |
15–30 m |
| Accuracy |
±3 mm / 10 m |
| Self-leveling range |
3° ± 1° |
| Self-leveling time |
3 s |
| Laser type |
Red |
| Wavelength |
635 nm |
| Laser class |
2 |
| Light source |
10 mW |
| Operating time |
12 h |
| Mounting |
Tripod socket |
| Power supply |
AA battery (LR6) x2 |
| Dimensions |
59 × 28 × 137 mm |
| Weight |
170 g |
| Certifications |
CE, RoHS |
