Produkta pārskats

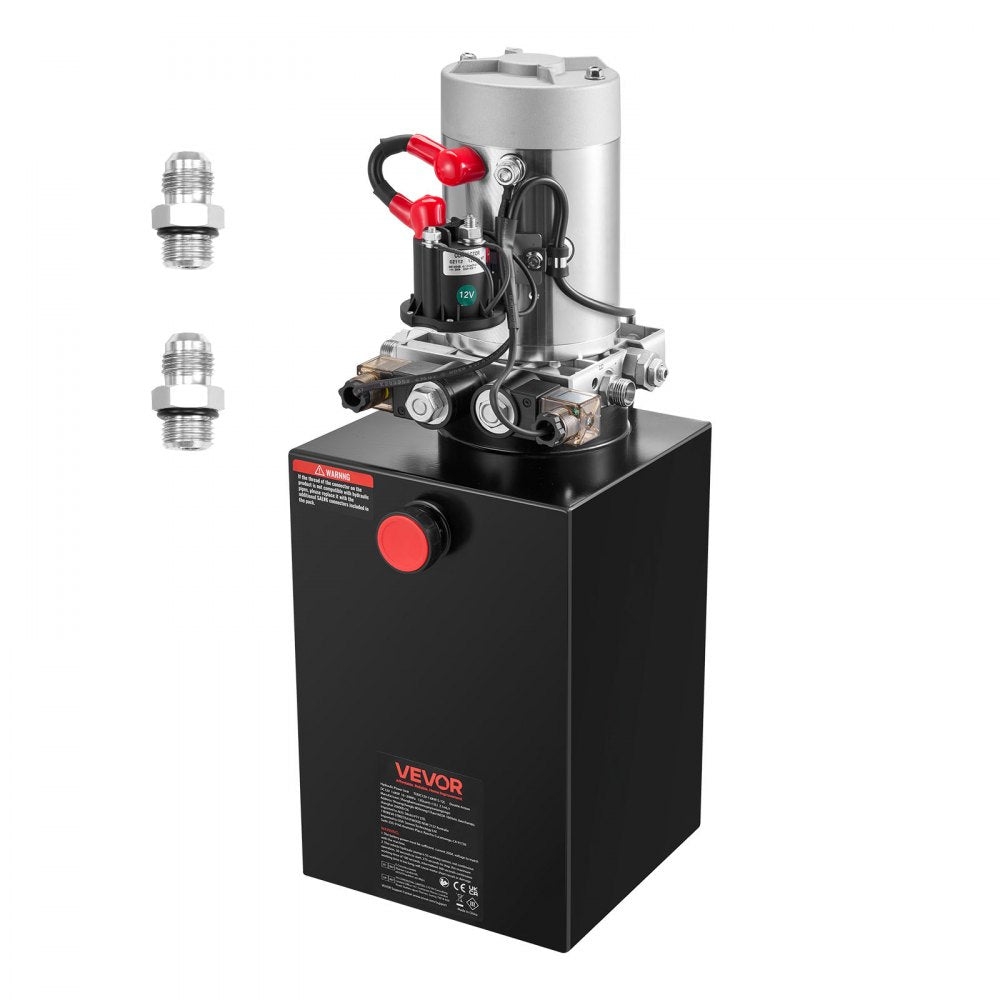

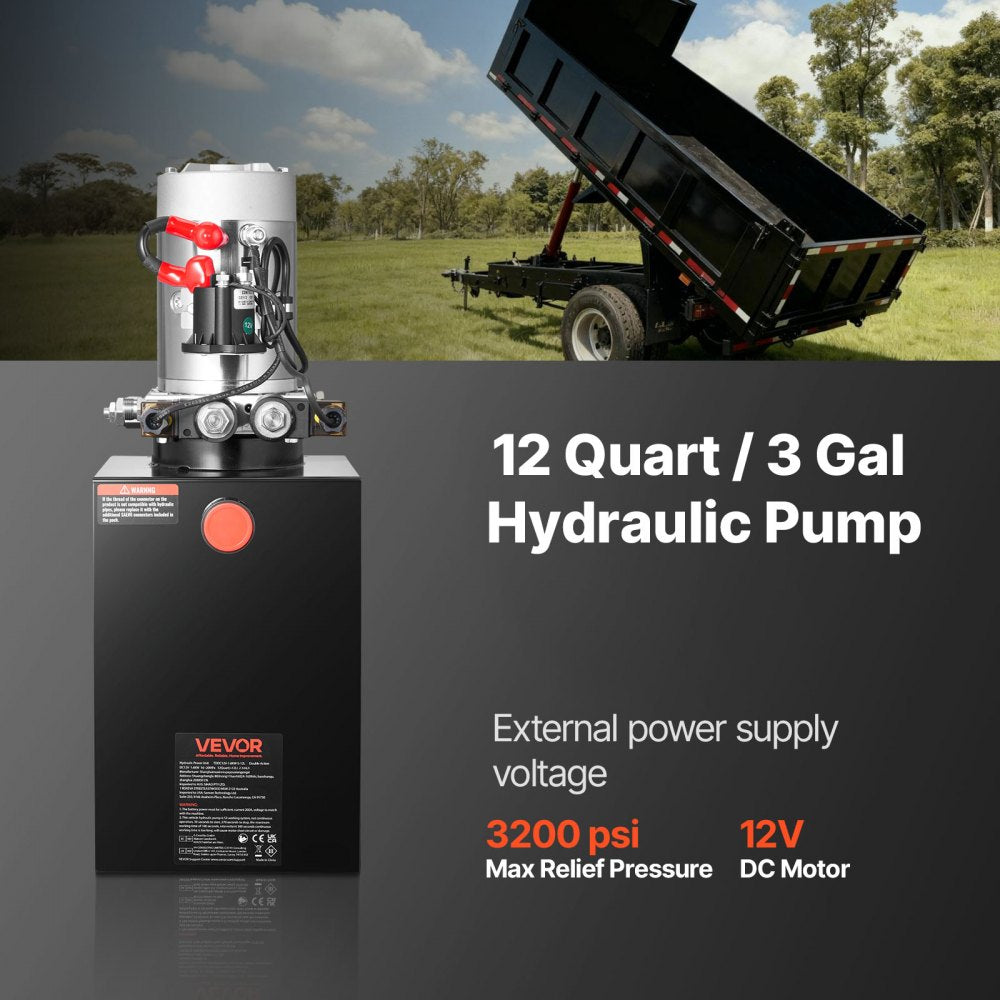

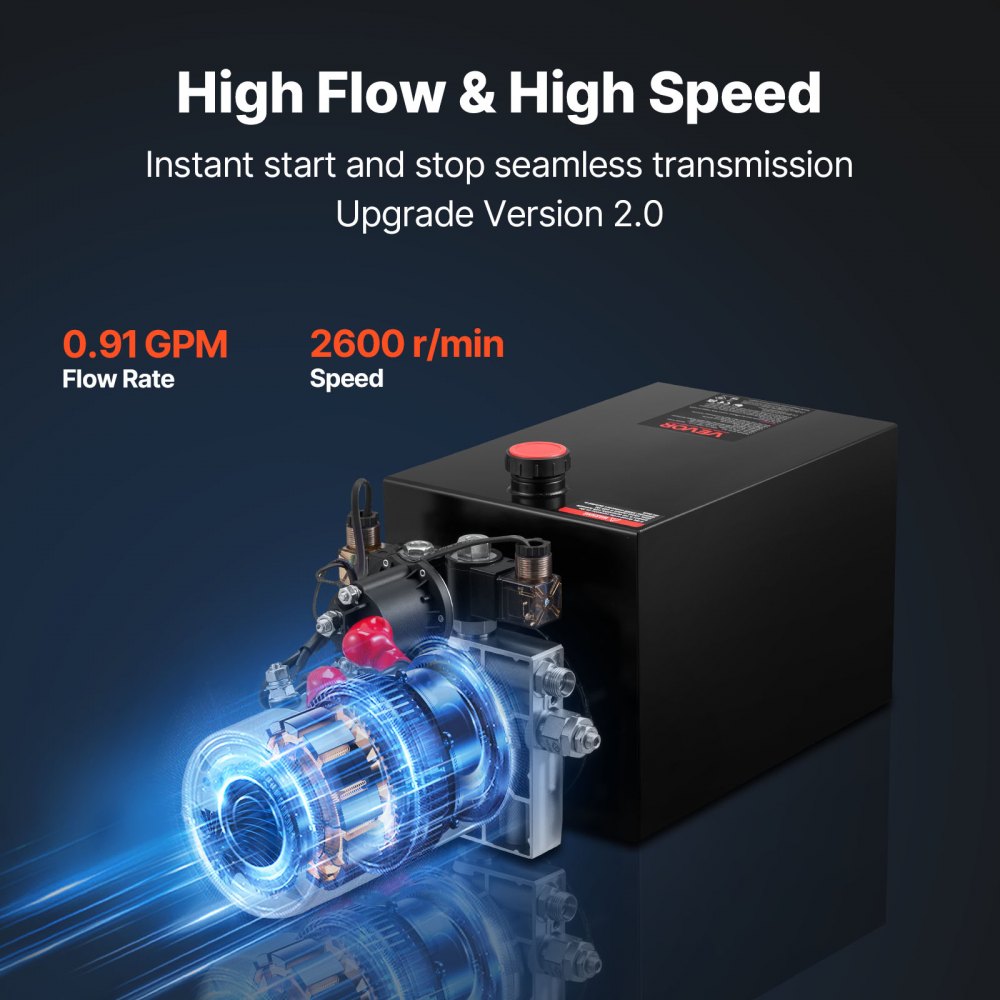

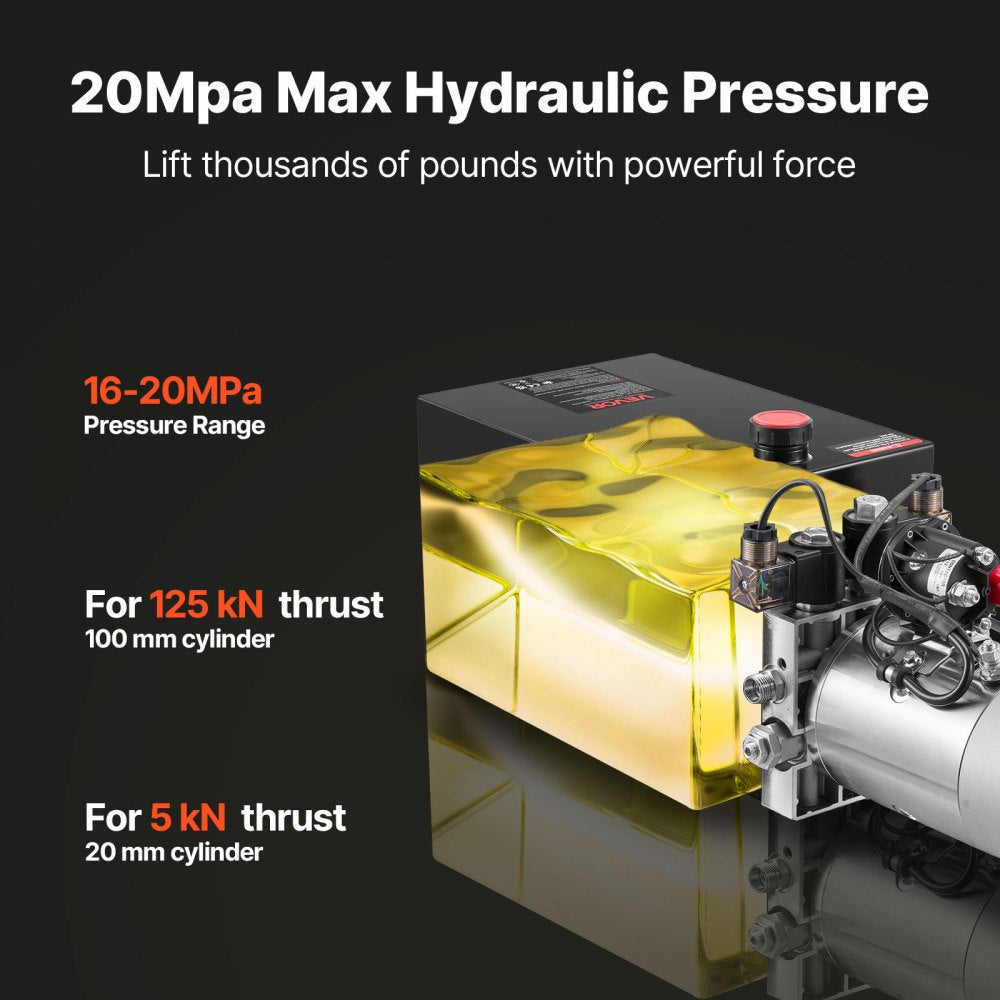

Power You Can Feel: This DC 12V, 1.6 kW hydraulic power unit moves 0.91 GPM with a 12-quart tank, 16–20 MPa working pressure, and up to 3,200 psi, so heavy-lift gear runs with steady, confident force.
-

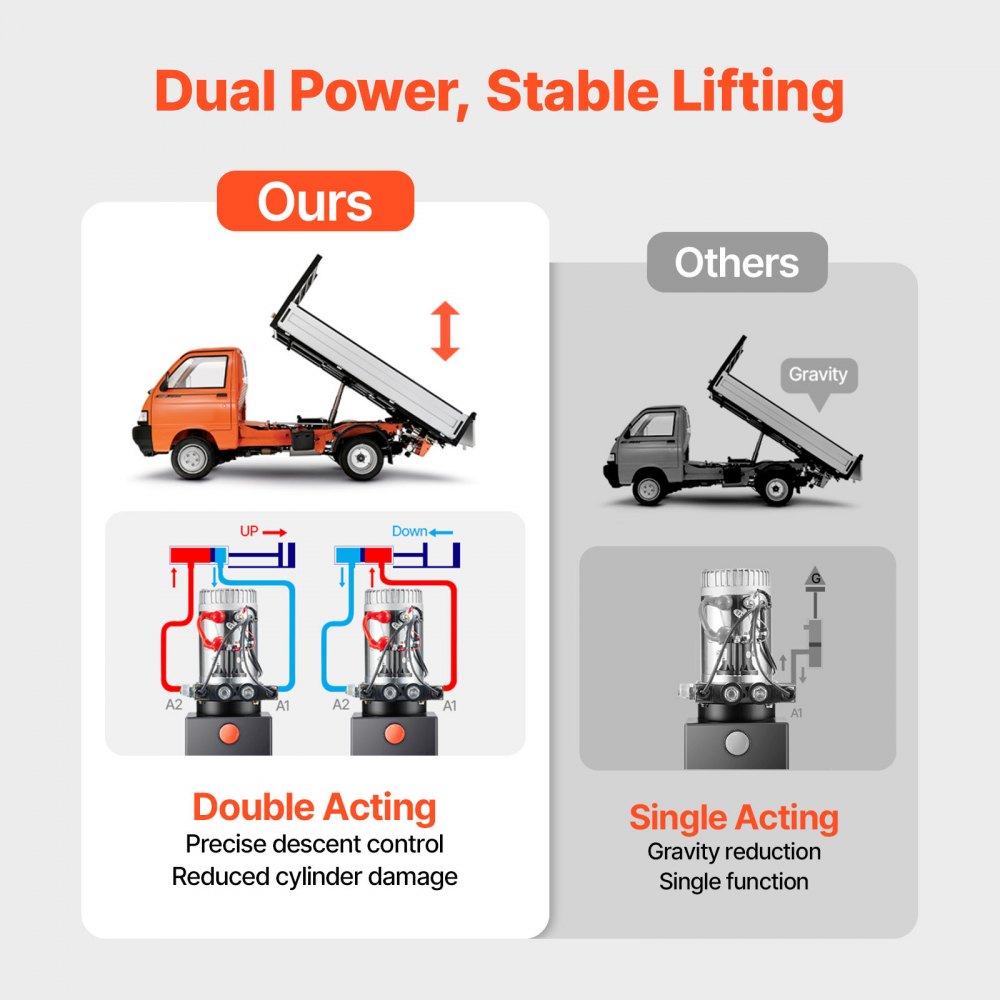

Double-Acting Precision: This hydraulic pump controls both raise and lower for pinpoint moves while using less hydraulic oil. The built-in relief valve auto-vents over-pressure, so failures drop and security steps up.
-

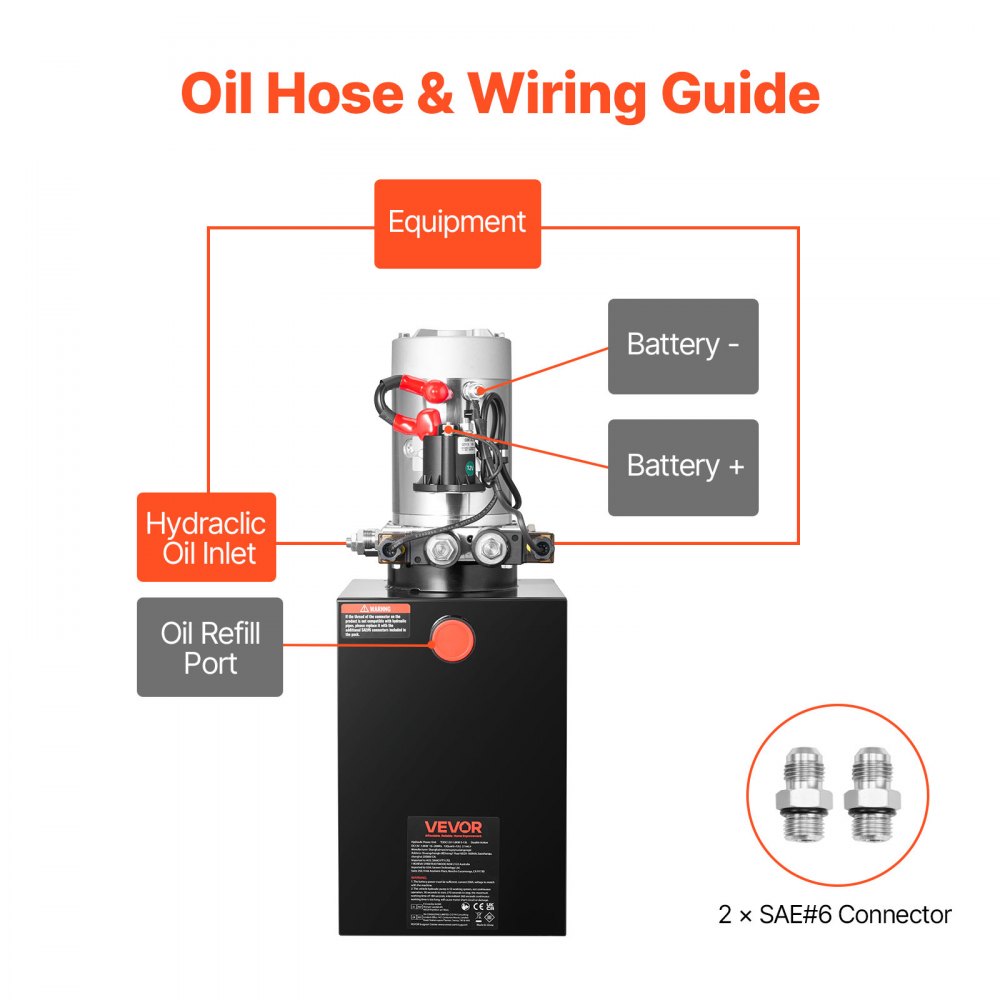

Easy to Install: This dump trailer pump arrives pre-assembled. You add hydraulic oil, connect power leads and hoses, and go. The SAE #6 fittings help you hook up standard hydraulic lines fast.
-
Heavy-Duty & Reliable: This dump trailer hydraulic pump seals tight to resist leaks, and the rust-resistant steel tank shrugs off daily bumps, so your hydraulic system stays tough and ready for long-term use.
-
Built for Many Jobs: This electric hydraulic pump powers dump trailers, liftgates, scissor lifts, lift tables, small presses, and bucket conveyors, so you get versatile power for shop and jobsite.
Product Specifications
| Item Model Number |
TDDC12V-1.6KW-S-12L |
| Voltage |
DC12V |
| Function |
Dual Acting |
| Reservoir Capacity |
12 Quart/3 Gal |
| Power |
1.6 kW |
| Flow Rate |
0.91 GPM(3.4 L/min) |
| Speed |
2600 r/min |
| Traffic |
2.1 mL/r |
| Net Weight |
31.3 lbs/14.22 kg |

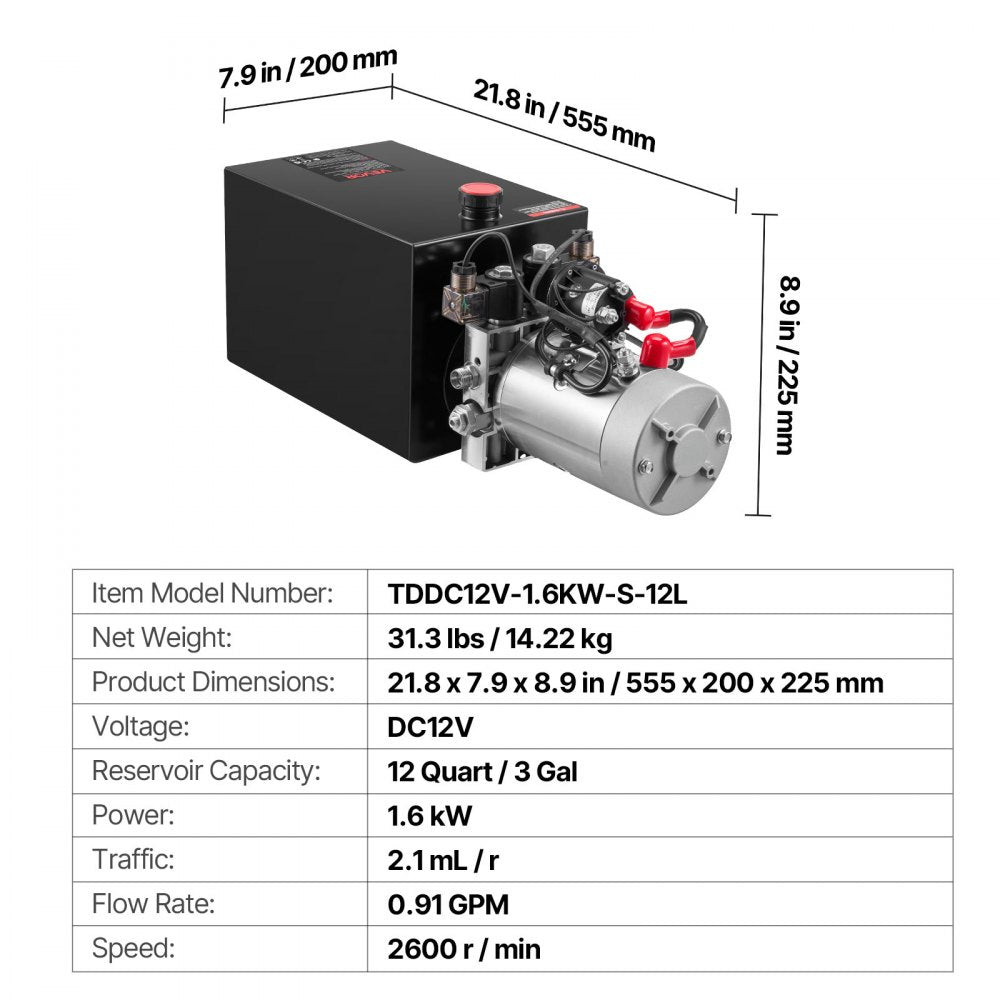

| Product Dimensions |
21.8 x 7.9 x 8.9 in/555 x 200 x 225 mm |
