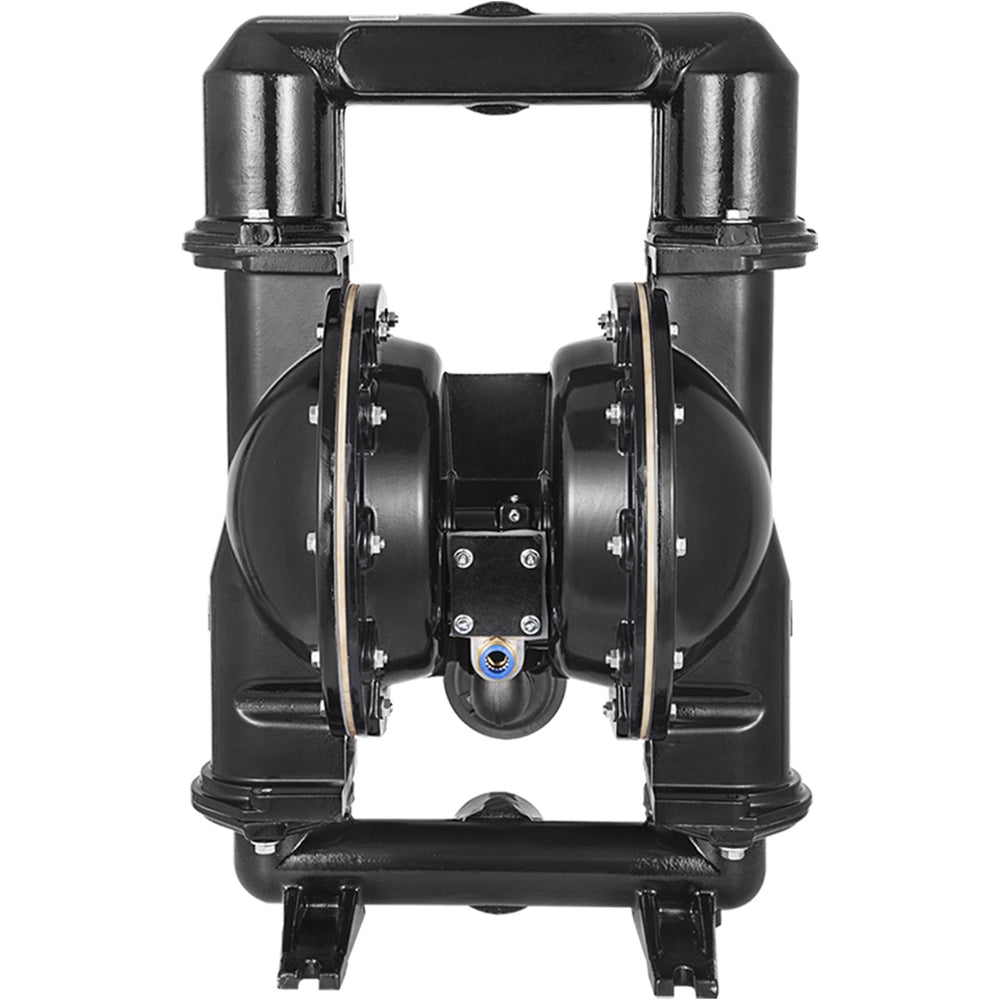

VEVOR Air-Operated Double Diaphragm Pump, 2 inch Inlet & Outlet, Aluminum Alloy Body, 75 GPM & Max 120PSI, Nitrile Diaphragm Transfer Pump for Petroleum, Diesel, Oil and Low Viscosity Fluids
€738,63 EUR
Taxes included.
Premium Double Nitrile Diaphragms: Our air-operated double diaphragm pump adopts nitrile diaphragms, durable, corrosion-proof, and long-lasting. Max. Temperature: 150 ℉/66 ℃; Max. Pressure: 120 psi; Max. Flow Rate：75 GPM; Max Head Lift：275.6 ft/84 m.
- Sturdy & Leak-proof Construction: The diaphragm pump housing is made of aluminum alloy material, bolted against leakage, sturdy, and corrosion-proof for long-time use.
- Excellent Air-operated Performance: Inlet/Outlet Port Size: 2 inch; Air Inlet Size: FNPT 1/2 inch. A high-quality glyd ring, the double-acting sealing, strengthens air performance.
- Unique & Professional Designs: Our double diaphragm pump features an externally available air distribution system. The modular air valve is stainless. This low pulsation air valve provides smooth and rapid changeover for increased efficiency and minimizes downtime.
- Wide Applications: This diaphragm pump can handle various fluids, such as waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, drink, and so on. It is widely used in many industries, such as petroleum, metallurgy, mining, coating, printing, water treatment, and automobile.
Product Specifications
| Model | QBY4-50L |
| Type | Air-operated Double diaphragm |
| Diaphragm Material | Nitrile |
| Body Material | Aluminum Alloy |
| Inlet/Outlet Port | 2 inch (50 mm) |
| Air Inlet Size | NPT 1/2 inch (12.7 mm) |
| Max Flow Rate | 75 GPM |
| Max Head | 84 m (275.59 ft) |
| Valve Type | Ball |
| Suction | 0-5 m (0-16.4 ft) |
| Max Suspended Solids | 3 mm (1/8 inch) |
| Average Air Consumption | 38 CFM |
| Self-Priming Dry | 3 m (10 ft) |
| Self-Priming Wet | 4.6 m (15 ft) |
