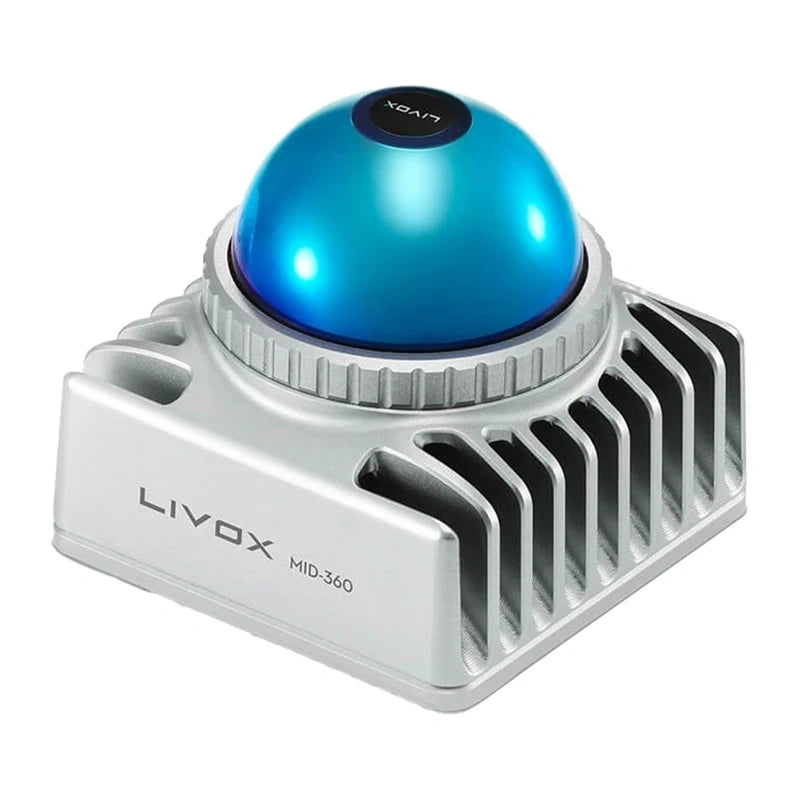

UNITREE R1 LiDAR Scanner for R1 Edu Robots
Expand the spatial perception capabilities of the UNITREE R1 EDU robot with a LiDAR scanner based on the MID360 module. The device offers a full 360° horizontal field of view and a vertical range from -7° to 52°. This allows for accurate scanning of the surroundings and supports tasks related to navigation, mapping, and research and development projects. The module is compatible with all versions of the R1 EDU robots and can be purchased as a standalone extension for self-assembly. The kit includes a metal protective frame, a set of mounting components, and dedicated cables. Technical support is also available to users. All of this facilitates integration and allows you to get started with the system quickly.
Included in the kit
- MID360 LiDAR scanner
- Metal protective frame
- Mounting kit
- Dedicated cables
- Technical support
| LiDAR model |
MID360 |
| Supply voltage range |
DC 9–27 V |
| Laser wavelength |
905 nm |
| Horizontal field of view |
360° |
| Vertical field of view |
From -7° to 52° |
| Compatibility |
Unitree R1 EDU humanoid robot (all versions) |
